Dear Welder Series… Panhard bar adjuster question

Dear Welder Series…
Received my order today. Your parts are absolutely fabulous. Just as advertised.
I do have a question though. Take a look at the pictures. The threaded bolt that goes into the threaded end of the pan hard bar on the end that gets welded to a bushing has a slight angle cut in it. Different from the others. I was wondering if it was supposed to be welded on an angle for mounting purposes or just a flaw in the cut off the bolt.

Dear Mike…

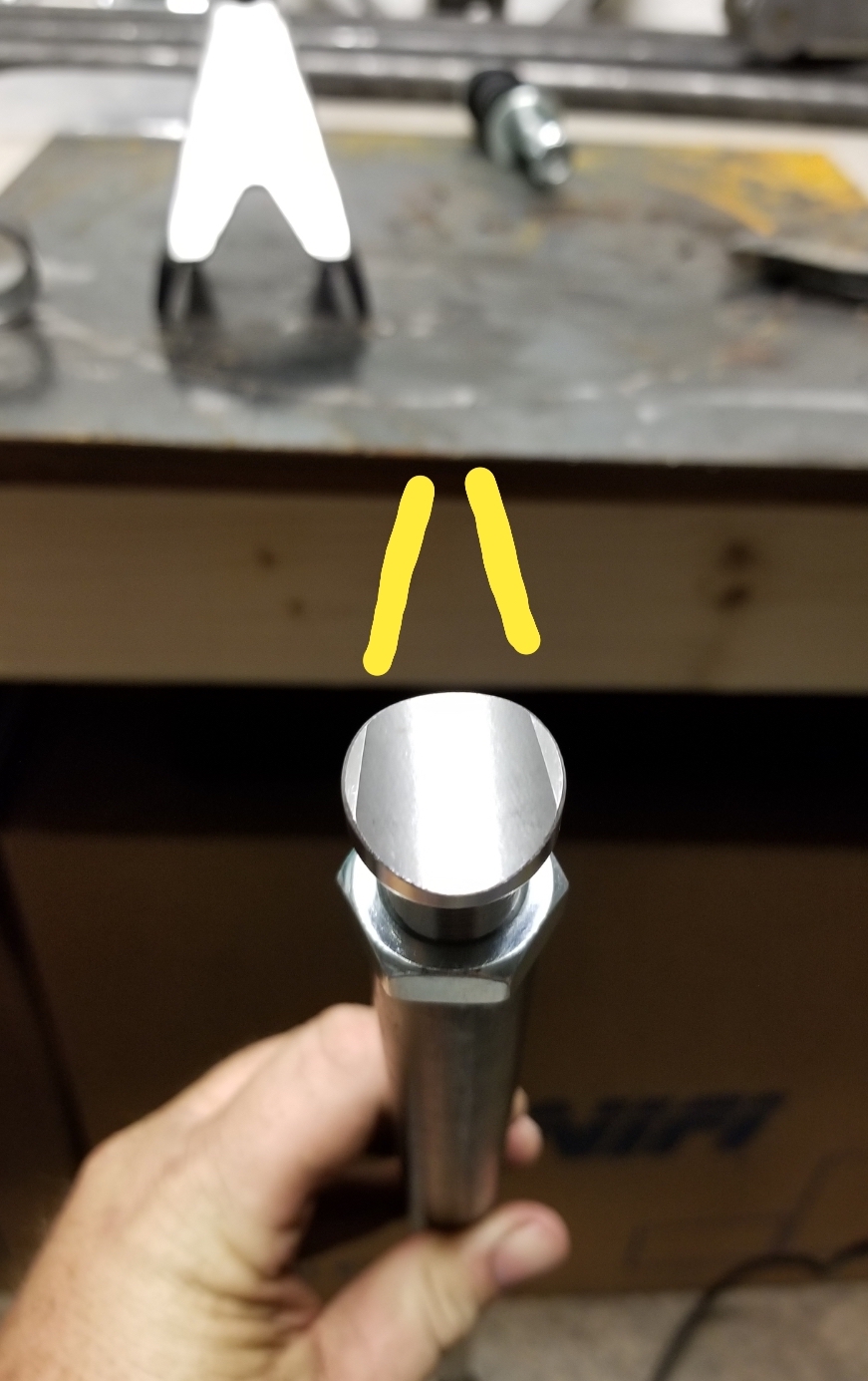

Hi Mike, thanks for your comments. The adjuster included in the universal panhard kit goes on the red end bracket and is notched on a 5 degree angle to clear the pinion. You’ll also notice the two frame tabs are different lengths – this is to compensate for the angle of the bar at the frame.
Thanks again!
DW Horton

Customer Pics: 1954 Chevy truck

I came across this build on the 67-72chevytrucks.com forum and asked the builder if I could share the pics here. He used our step notch, rear four link, Panhard, and center section. Here’s the link to the build: http://67-72chevytrucks.com/vboard/showthread.php?t=653414

Nice work! Parts used:





Custom 8-3/4 Dodge rear end Panhard bracket

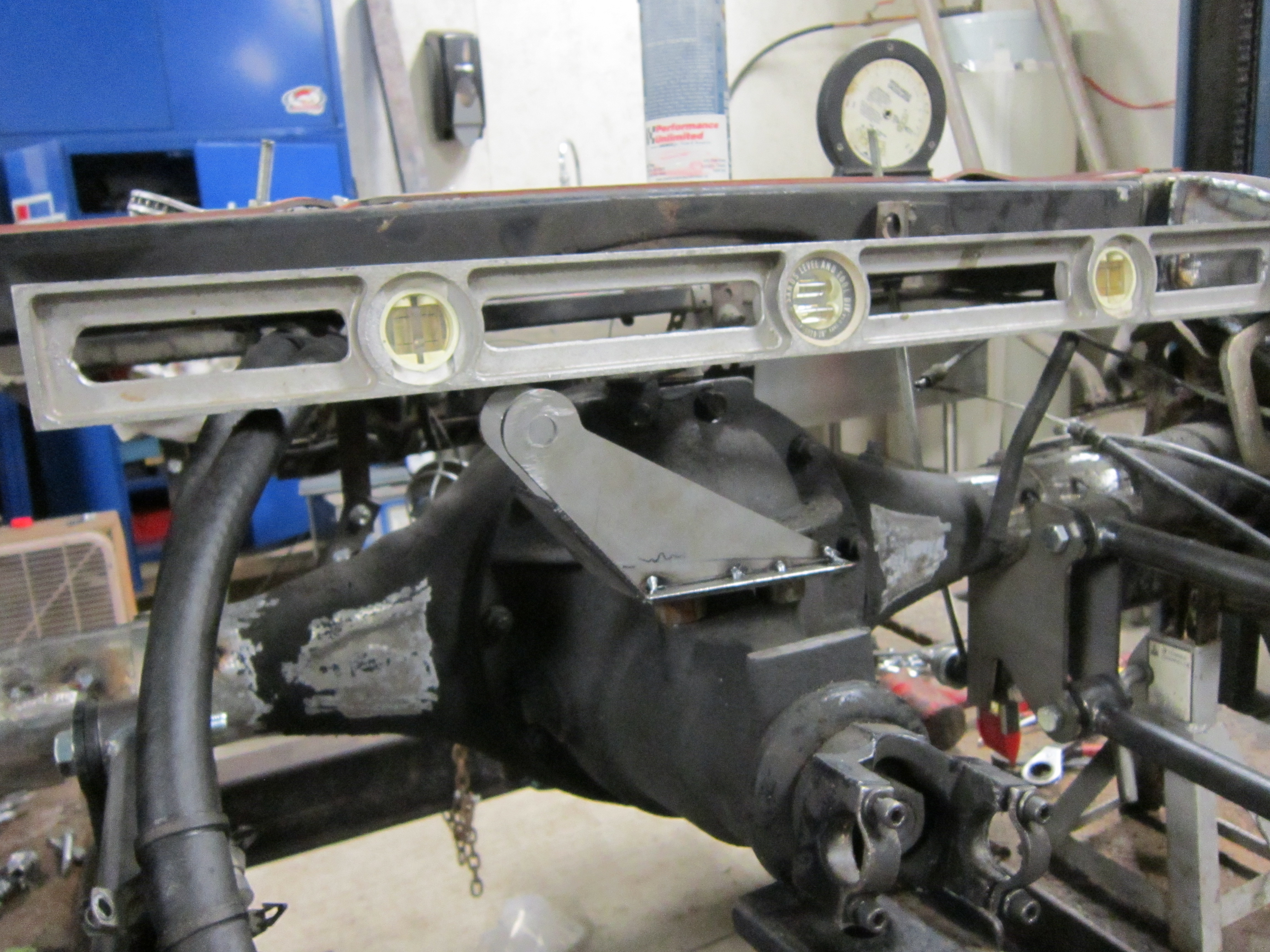

John was in to the shop the other day and asked if we had a bracket for his 8-3/4 Dodge rear end to mount the Panhard bar. We don’t have one specifically for it, and after going over some pictures he had, we brainstormed and came up with something like this:

He used two Versatabs to mount the bar and formed a plate to box them in and to hold the bolts.

Thanks for sending the pics, John!

Dear Welder Series… 1951 Chev truck rear suspension?

Dear Welder Series…
I have a 1951 Chevrolet truck 1/2 ton putting a 2002 Chevy S10 4×4 Blazer 8.5 ring gear rear w/disc brakes in. I want to use the 4 link system, which one of yours will work easiest and best?

Thank you!

Dear Don…
Don, the decision regarding a parallel or a triangulated rear 4-link is somewhat philosophical. Here is my explanation:

Both kits do a good job of locating the rear end, holding it in place, and letting the suspension work.

The triangulated kit costs less than the parallel kit because a Panhard bar is not required.



The parallel kit does require a Panhard kit (about $100.00). The parallel kit is easier to adjust for squaring the rear axle to the frame center line, and centering the frame left-to-right.

The Panhard bar does move the frame left-to-right as the frame goes up and down, but if a straight Panhard bar is installed level, this amount is insignificant (about 1/8″ with a 19″ bar) for normal suspension travel.

I hope this helps you decide. Thanks for looking at Welder Series parts.
