Dear Welder Series… Splined sway bars vs Pinned

Dear Welder Series…

Good morning. I’m just curious as to the purpose of the one splines end option on the sway bar kits vs. the pinned both ends option. What would the benefit be from the splined end or having both ends splined vs. Pinned. Thank you! Dear Kevin…
Good morning, Kevin.

At one time (mid 90’s) our sway bars were made in 2” length increments with 1” of spline on each end. This required a lot of inventory (we had bars from 18” – 36”) and we always ran out of something before we needed a large, cost effective quantity to run replacement stock. I think splining one end, making the bars in just 2 lengths (3/4” bars at 36” and 45”), and pinning the second end was a collaboration idea with one of our pro builder customers who used a lot of odd length bars and had to cut off one splined end anyway (… that had been paid for). Recently, the cost to spline the one end increased dramatically and we were not able to find a suitable alternate splining shop. The pinned ends have never given any problem that we are aware of so the decision was made offer both ends pinned until the one-end splined bars are gone.

The splined end allows the arm to be removed more easily than the pinned end. It also allows the arm to be “clocked” on the bar, but only in 10 degree increments. (The 3/4” bars have 36 splines.)

When the sleeves get pinned to the bar before the arms are attached, the arms can be tacked so they are aligned and the pins can be positioned to be most easily removed. Then the sleeves can be removed and the arms can be finish welded.

The pinned kits cost less than the splined kits.

I hope this answers your (very thoughtful) questions.

Thanks for looking at Welder Series’ parts.
Paul Horton

Dear Welder Series… Corvette sway bar questions

Dear Welder Series…

I am wanting to install a rear sway bar on my 1978 corvette. Due to modifications to corvette and rim/tire size, a factory bar will not work.
This kit seems to be the closest to what will work for me but it I am hoping to get some more information from you before I purchase.
1)  Can you confirm the length of the torsion bar is 45″? If not what is the actual total length. The corvette frame is right around 43-44″ wide  and it needs to sit directly under it. There is minimal area to go narrower but is probably possible. Obviously I can trim it too.
2)  The outer tube what is the supplied length?  — so I can figure out if an under frame mount will work or I will have to fab up some custom brackets.
3)  What does the under frame mount look like?
4)  The lower link mounts won’t work in my situation so can they be removed with the  coil over mounts for a bit more cost savings.
5)  Do you have a detailed drawing (or a scale PDF) that I could print out, cut out to see if it would work around the interferences I have.
If you had a 45″ kit without any bracketry (swaybar , tube, bushings, arms, couplers and rod ends for the links)  that would be ideal.
Thanks,
Mike

Dear Mike…
Hi, Mike.

1)  The actual sway bar is 45” long. One end has 1” of spline. This bar is designed to be used as-is or cut to length. We also have 45” bars splined both ends. The 3/8” thick arms mount outside the bar, so if the 45” bar was used as is, the distance outside the arms would be 45-3/4”.
2)  The supplied outer tube is 1-3/8” OD and 43” long.
3)  The under frame mounting bracket:
4)  The lower axle mounts for the links can be taken out of the kit:
5)  I don’t have a single drawing of the whole kit. Dimensions for the various parts should all be on the website.
Welder Series is a “builder supply” company and, as such, all parts are available individually. They are shown on our website with dimension details. Please get in touch again if we can give you some other info.
Thanks for looking at our parts for your project.
Paul Horton
Dear Welder Series…

Paul,
Thanks for the info, it helps greatly.
I am just working out  how to best mount it, what parts will work in my case and also ways to keep the weight of the added system in check.
Mike

Dear Welder Series… T56 Mount?

Dear Welder Series…
Good morning. I am getting ready to put an order together and had a few questions,

1. Your simple transmission mount kit, will it work for a Tremec T56 bolt pattern?
2. Also your universal sway bar. I currently have your 4 link system, will the sway bar shift from side to side for the 4 link movies a 1/4-1/2 ” from side to side when the suspension is traveling.
3. Your exhaust hangers do you have them in stainless 304 or 409?
Thanks, Mike
Dear Mike…
Good questions.

1.  All of our transmission mounts work with the 2268 and 31158G insulator. These insulators both fit your T56 trans. Regarding the crossmembers, http://welderseries.com/Transmission-Mounts-Crossmembers-c13290625, your shifter handle mounting area might hit the crossmember of the 2115 style. If you want to use this mount, the crossmember could be notched for clearance. I like the 2115 because it adds a crossmember to the frame and the drop-out saddle makes it easy to remove the trans.
2.  The rod end links in the sway bar kit allow for left-to-right movement during suspension travel. For more info about sideways movement, you could read https://drive.google.com/file/d/0BxUbZIT8qqYCdmF2N2RCR2MxQlU/edit .
3.  We do have stainless exhaust hangers. Stainless hangers are referenced SS, mild steel MS.  Flanges are also available in MS and SS material.
Thanks again for looking at Welder Series for your project.
Paul Horton
Dear Welder Series…
Awesome thanks for the quick response I appreciate it

Dear Welder Series: sway bar for Camaro clip?

Dear Welder Series…

Hey DW.
Hope all is well sir
Am working on a 39 Chev that someone has grafted a Camaro (I think) clip on with stock control arms.

I can’t get the factory sway bar in around the bottom of the rad etc.

Do you have parts available in your universal sway bar kit(s) to make something work?

Regards,
John

Dear John…
Good morning, John. Paul Horton here.

The tube that encloses our sway bar is 1-3/8” diameter and installs straight across the frame. It can go below, through, or above the frame, 8 – 10” behind or in front of where the sway bar arms will link to the upper or lower control arms. In an IFS installation, often the outer tube is slightly longer than the outside width of the frame where it mounts. The arms have to be bent for tire clearance in a turn.
I’m not familiar with the stock Camaro bar and where it doesn’t clear, but maybe the above info and the pics on the web store will give you some ideas. You could email pics to info@welderseries.com and I’d see if I could make some suggestions.
Thanks for considering our sway bar.
Paul Horton
Dear Welder Series…
Good enough sir thank you very much

Dear Welder Series… sway bar through 34″ OD frame?

Dear Welder Series…

Wanting to buy the sway bar kit for my 57 chevy pickup but have a question.
My frame rails measure 34” outside to outside, is your 36” kit going to be wide enough as I need to put this through the center of the frame rails?
Thanks for any help,
Don

Dear Don…

Hi Don, thanks for your note. The outer tube in the 36” kit is 34” long. It should be ok – it will just look like the bushings go right into the frame rail. If necessary, you can bend the arms away from the rails for additional clearance.

DW Horton
Welder Series Inc.

April 2018 Photo Sharing

Thanks to everyone who sent in pictures of how Welder Series products are being used on your projects through the month of April. Hopefully these will spark an idea that you can use on your own project! See below the gallery for links to products shown. The winner (chosen at random by random.org) has been notified and a $50 credit has been applied!

Submit your own pictures here.

Frame curves used as front crossmember.

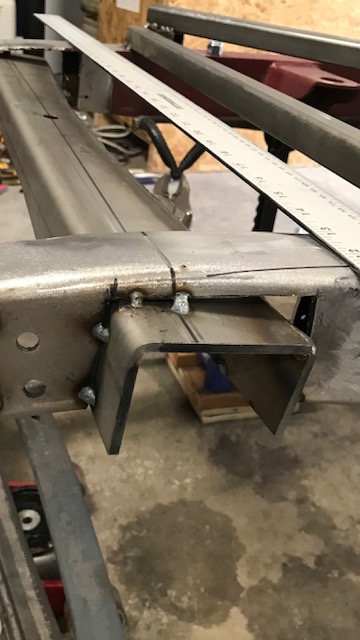

Flat crossmember comes extra long to be used as C notch.
Trimmed and ground flush.
Neat little wings added to the back of the crossmember!

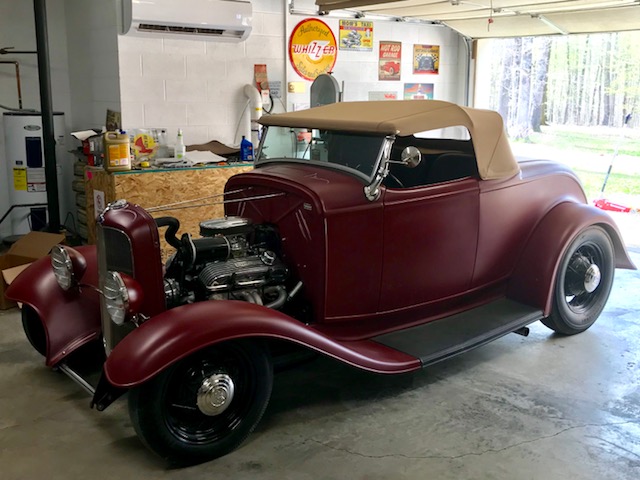

Perfect Deuce stance!

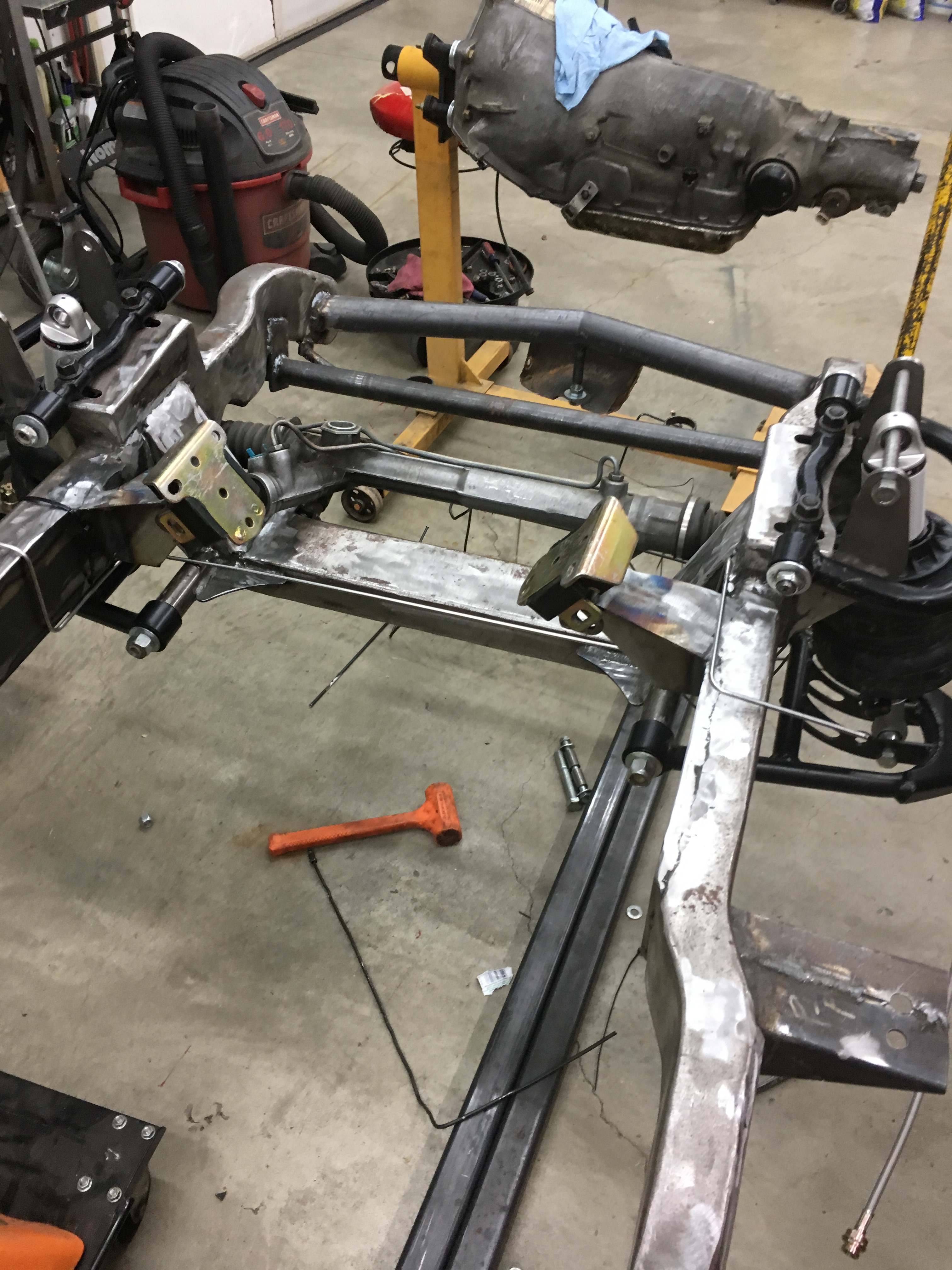

Welder Series coilover Mustang II.
Frame curves.
C005 engine mounts and Energy Suspension urethane insulators.
Holes drilled for weld-in bungs.

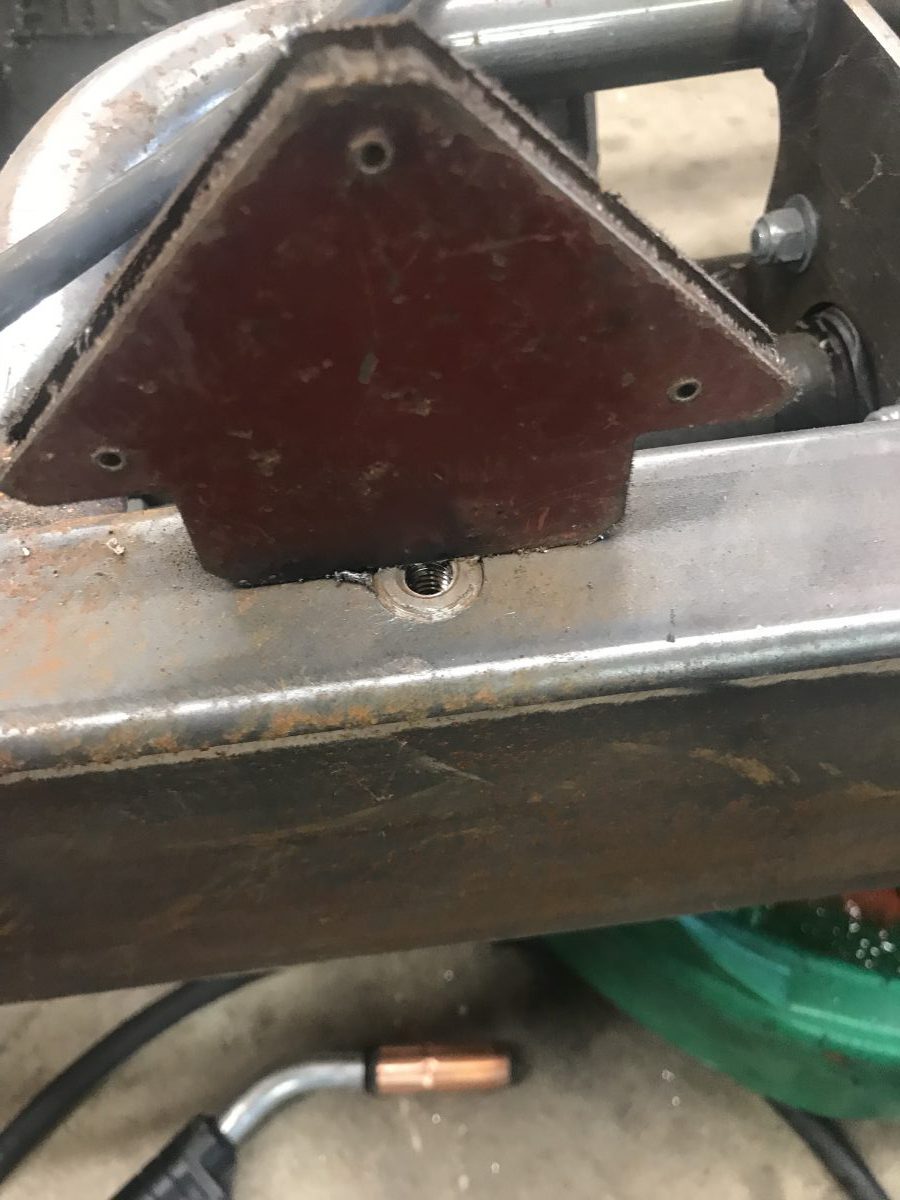

Held flush with a magnet.
Tacked in place!

Dear Welder Series… Sway Bar Install – 32 Ford

Dear Welder Series…
Attached are pictures of my plan for the Welder Series rear sway bar kit that I am installing on my ’32 Ford project. At this time it is tacked in place and I think it will work as I hope. I still need to tweak the positioning. I ran the bar through the square tube crossmember and the arms ended up directly over the rear axle. Also you can see the Welder Series exhaust hangers near the transmission tail housing and one behind the pipe passing over the rear axle. These are the parts that I recently ordered from you.

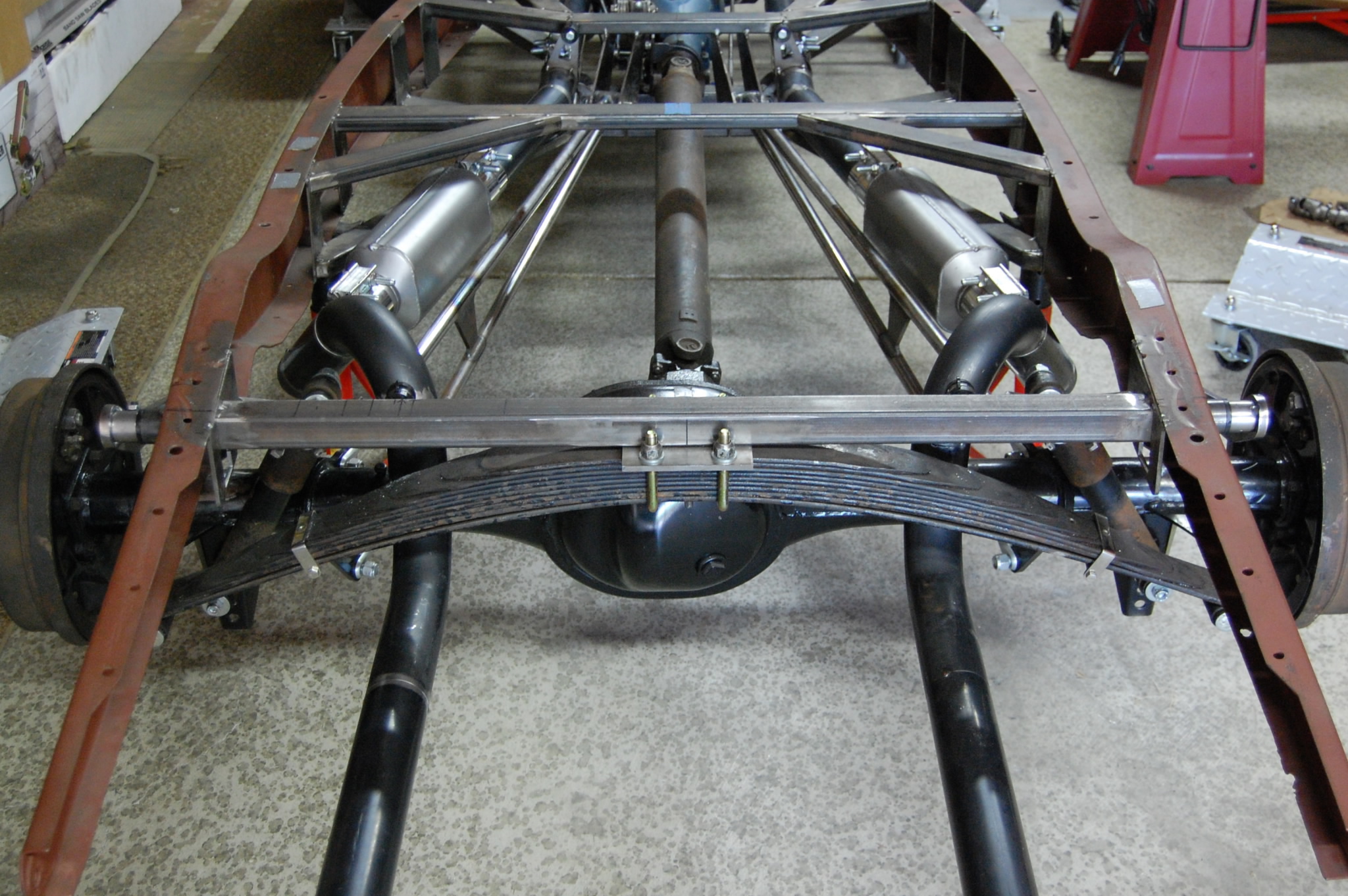

The bar runs through the square tube crossmember.
Our exhaust hangers were used as well.

Sway bar used on Corvette IFS in 1942 Chevy pickup

Here are some pictures of the installation of a universal sway bar on a 1942 Chevy pickup. I installed it to the rear of the a arm because it gave me much more room. It was going to be very close to and possibly hitting on the tie rods for the rack and pinion steering. I was very pleased with the sway bar and the installation. I will and have recommended your products. Thanks so much,
Jim

The customer bent the arm to clear the tire in a turn.
Nice stout bracket to mount the outer tube.
