1956 International Pickup Mustang II

Grant Schwartz stopped in the other day to pick up a Mustang II crossmember, and I think he had it installed quicker than my kids can go through a jar of Elmira maple syrup.

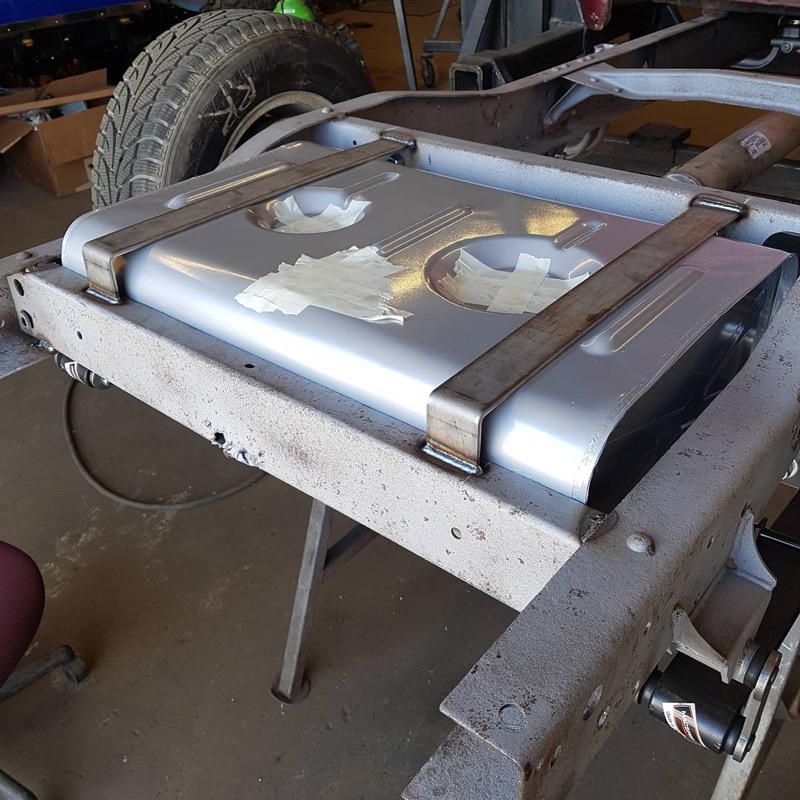

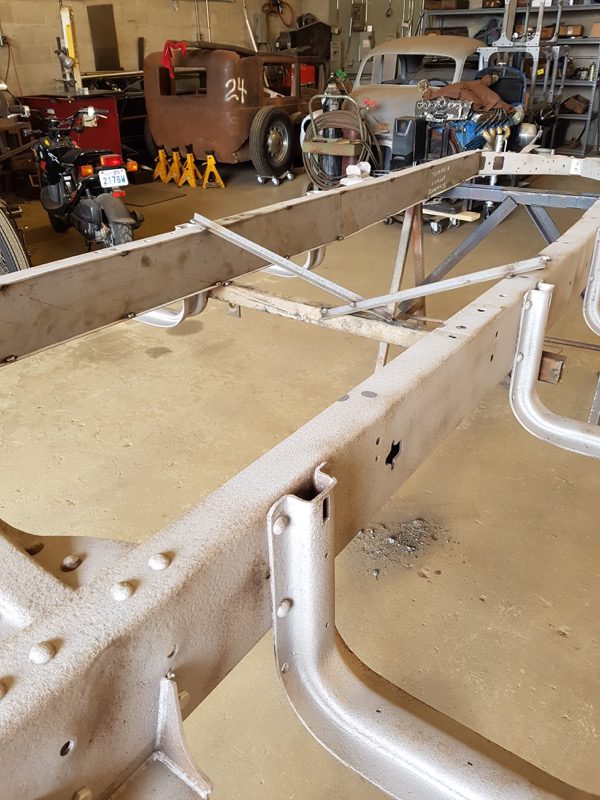

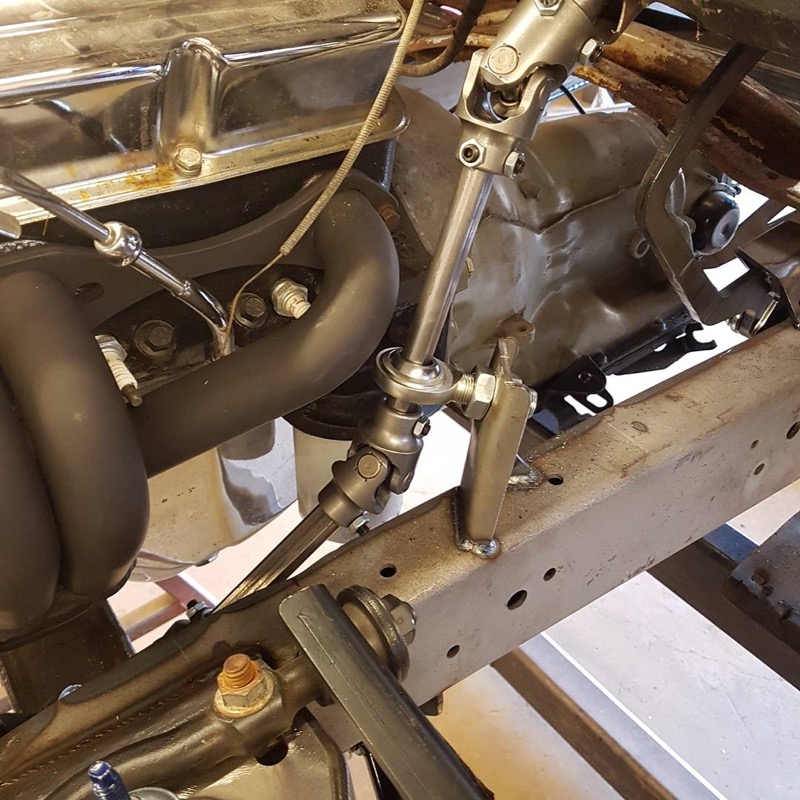

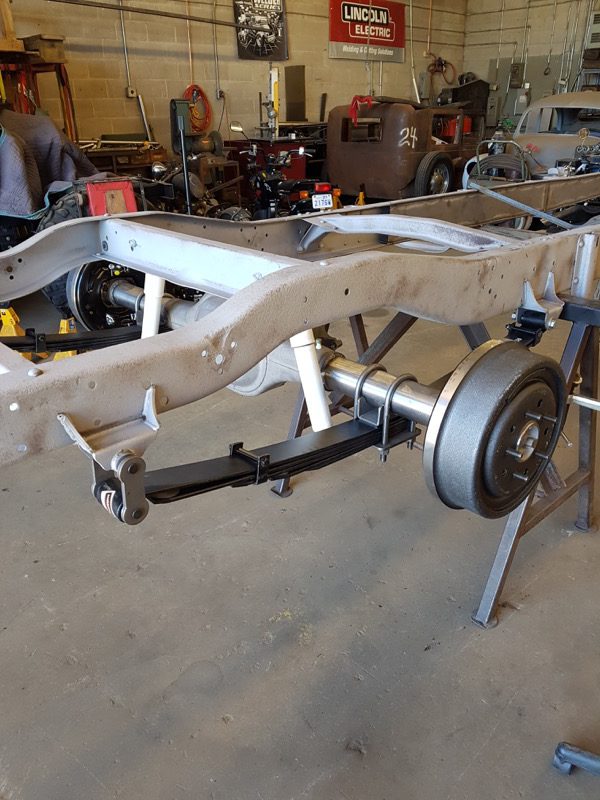

Here are some pictures he took. To see more of Grant’s work, please visit and follow his Facebook page: https://www.facebook.com/schwartz.inc

Parts Used:




Dear Welder Series… 1949 International kb1 Mustang II

Dear Welder Series…
I have a 1949 international kb1. I would like to use coil springs and the mustang 2. I think it would take the 60 inch track. Is this correct? What would be the total cost shipped to Winnipeg? Do you offer welding of the basic member? Thanks

Dear Paul,
Paul, There are 2 frames for KB1’s, according to my info, 28” and 30” outside width. With either of these frames, I’d widen the frame outside dimension by adding tubing so the 60” kit has more frame surface to weld to. Read through the installation sheets here and I think you’ll see what I mean. (30” frame outside doesn’t give any surface on top of the frame for the upper tower to weld to in the 60″ kit.)

Here is a link to the web store page for the Mustang II:

There are other parts there that you might need, too, and some videos.

The 60-1/2” kit, welded, including freight and sales tax would total C$346.50.  (That’s Canadian Dollars…)

Thanks for looking at Welder Series parts for your project.
Paul Horton



1953 International Mustang II

What do you mean, “modify the rails”?

We have had quite a few questions about installing our Mustang II kit in cars that don’t lend themselves well to a conversion. Sometimes “modifying the frame rails” is necessary. What exactly do we mean by that?

I thought I’d put together some pictures that show a few frames that have been modified to accept a Mustang II crossmember. If you have any questions about your frame or any of our parts, please email or call toll-free: 1-888-648-2150.

This Oldsmobile frame has been bottlenecked to accept our Mustang II crossmember.
This Oldsmobile frame has been bottlenecked to accept our Mustang II crossmember.
The '57 Oldsmobile has received a similar treatment, but the builder used larger diameter tubing straight forward from the firewall.
The ’57 Oldsmobile has received a similar treatment, but the builder used larger diameter tubing straight forward from the firewall.
You can see the spring clearance notch in the frame rail in this picture of the finished '57 Olds.
You can see the spring clearance notch in the frame rail in this picture of the finished ’57 Olds.
Here is a Welder Series Mustang II in a 1978 Volvo. Extra material was 'wrapped' around the existing front rails of the unibody car.
Here is a Welder Series Mustang II in a 1978 Volvo. Extra material was ‘wrapped’ around the existing front rails of the unibody car.
A '57 Ford frame has the springs mounted inside the frame rails.
A ’57 Ford frame has the springs mounted inside the frame rails.
The '57 has been cleaned up and 2x4 tubing was used to mount our MII.
The ’57 has been cleaned up and 2×4 tubing was used to mount our MII.
1953 International Mustang II
1953 International Mustang II
1953 International Mustang II
1953 International Mustang II
1940 Dodge Mustang II
1940 Dodge Mustang II
1940 Dodge Mustang II
1940 Dodge Mustang II

If you’ve put our in something “weird”, please send us some pictures!
